ISO11452-5:導波線試驗法(Road vehicles -- Electrical disturbances by narrowband radiated electromagnetic energy -- Component test methods -- Part 5:Stripline.)

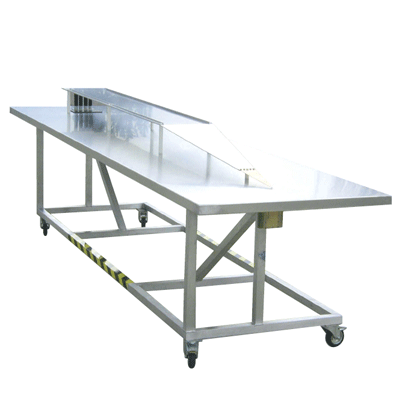

型號:SR50/1000
Strip-line for immunity-tests acc. to
DIN/ISO 11452-5, 50 Ohm - version.
Frequency-range: DC to 1GHz
Max. input-power: 1000W (long term)
Impedance: 50 Ohm (+/- < 5 Ohm)
Wave impedance: 377 Ohm
VSWR: better than 1,22 up to 1GHz
Dimensions: 4300mm x 1500mm x 1050mm (LXWXH)
Height of the table: 950mm
Weight: approx. 140kg
Incl. rotating metallic table.
For storage the stripline can be divided in
parts 2 x (2150mm x 850mm x 1650mm).
型號:SR 90/1000
Strip-line for immunity-tests acc. to
DIN/ISO 11452-5, 90 Ohm - version.
Frequency-range: DC to 1GHz
Max. input-power: 100W (long term); (>100W with impedance
adapter)
Impedance: 90 Ohm (+4/ -6 Ohm)
Wave impedance: 377 Ohm
VSWR: better than 1,92 up to 1GHz
Dimensions: 3500mm x 900mm x 1000mm (LXWXH)
Height of the table: 850mm
Weight: approx. 90kg
Incl. Rotating metallic table
SR1000-50/20
Stripline for immunity-tests acc. to
DIN/ISO 11452-5, 50 Ohm - version.
Height under the plate: 20cm
Frequency-range: DC to 1GHz
Max. input-power: 1000W (long term)
Impedance: 50 Ohm (+/- < 5 Ohm)
Wave impedance: 377 Ohm
VSWR: better than 1,1 up to 1GHz
Dimensions: 4300mm x 1500mm x 1050mm (LXWXH)
Height of the table: 900mm
Weight: approx. 140kg
Incl. Rotating metallic table.
For storage the stripline can be divided in
parts 2 x (2150mm x 850mm x 1650mm).
