NBM-520-手持式電磁波量測儀-益安信科技

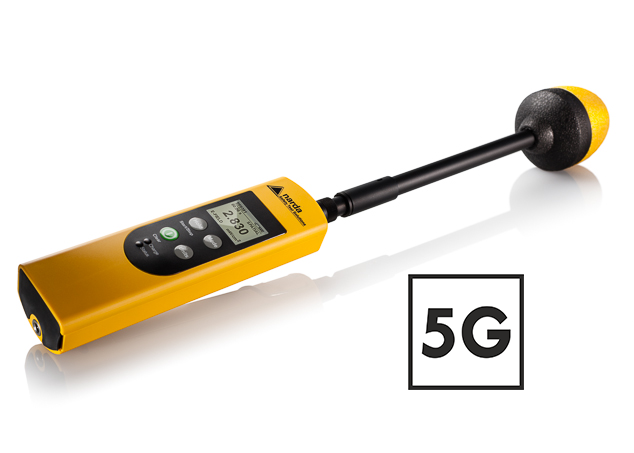

手持式電磁波量測儀

●以全向性探棒進行測量，適用於100kHz~90GHz頻率範圍之應用
●隨插即用的探棒介面，能自動偵測探棒參數，操作簡單
●超小、超輕量。簡單的4鍵式操作設計
●完全自動歸零調整，可確保精準的測量結果
●可經光纖連線，進行遠控操作
●完全符合環保署NIEA P203.90B及IEEE C95.3等檢測方法
●背光單色LCD，可選擇背光時間，日光下也能清楚辨識
●4種測量值模式：瞬時值(ACT)、最大值(MAX）、時間平均值(AVG)、空間平均值(SPATIAL)
●可顯示單位：
使用平坦探棒時為V/m、A/m、mW/cm²、W/m²
使用加權(形狀)探棒時為限值的％
●智慧型探棒介面能自動偵測NBM探棒類型，並載入校正資料。
●可依使用者定義的時間間隔，進行全自動的零點調整
●高場強之聲音及視覺警報
●可從PC設定警報臨界值

型號 : NBM-520

數量 :

高頻探棒
Probe HF 3061, H-Field, for NBM, 300kHz-30MHz	2402/05B
Probe HF 0191, H-Field, for NBM, 27MHz-1GHz	2402/06B
Probe EF 0391, E-Field, for NBM, 100kHz-3GHz	2402/01B
Probe EF 0392, E-Field, HiPow, for NBM, 100kHz-3GHz	2402/12B
Probe EF 0691, E-Field, for NBM, 100kHz-6GHz	2402/14B
Probe EF 0692, E-Field, for NBM, 600MHz-6GHz	2402/20B
Probe EF 1891, E-Field, for NBM, 3MHz-18GHz	2402/02B
Probe EF 4091, E-Field, for NBM, 40MHz-40GHz	2402/19B
Probe EF 5091, E-Field, for NBM, 300MHz-50GHz, Thermo.	2402/03D
Probe EF 6092, E-Field, for NBM, 100MHz-60GHz	2402/17B
Probe EF 9091, E-Field, for NBM, 100MHz-90GHz	2402/18B
Probe EA 5091, FCC 1997 Controlled Shaped for NBM, 300 kHz - 50 GHz, E-Field	2402/07D
Probe EB 5091, IEEE 2019 Restricted Shaped for NBM, 3 MHz - 50 GHz, E-Field	2402/21B
Probe EC 5091, SC 6 2015 Controlled Shaped for NBM, 300 kHz - 50 GHz, E-Field	2402/16D
Probe ED 5091, ICNIRP 1998 Occ Shaped for NBM, 300 kHz - 50 GHz, E-Field (compliant with ICNIRP 2020 above 30 MHz)	2402/10D

選購配件

Test-Generator 27 MHz

2244/90.38

Tripod, Non-Conductive, 1.65m, with Carrying Bag

2244/90.31

Tripod Extension, 0.50m, Non-Conductive (for 2244/90.31)

2244/90.45

Handle, Non-Conductive, 0.42m

2250/92.02

Carrying Strap Hardcase, for SRM/NBM-500

3001/90.04

Cable, FO Duplex (1000 μm) RP-02, 2 m (included in Set 2400/102B and 2400/104B)

2260/91.02

Cable, FO Duplex (1000 μm) RP-02, 5 m

2260/91.09

Cable, FO Duplex (1000 μm) RP-02, 10 m

2260/91.07

Cable, FO Duplex (1000 μm) RP-02, 20 m

2260/91.03

Cable, FO Duplex (1000 μm) RP-02, 50 m

2260/91.04

Cable, FO Duplex, F-SMA to RP-02, 0.3 m

2260/91.01

O/E Converter RS232, RP-02/DB9

2260/90.06

O/E Converter USB, RP-02/USB (included in Set 2400/102B and 2400/104B)

2260/90.07

Cable, Adapter USB 2.0 - RS232, 0.8 m

2260/90.53
