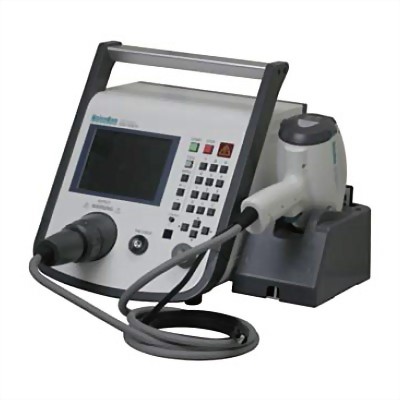

| Items | ESS-S3011A specifications | |
| Polarity | Positive or negative | |
| Output voltage |
0.2 to 30.0kV +/-5% (30.5kV Maximum) 0.2 to 10kV: 0.05V step, 10.0 to 30.0kV: 0.1kV step |
|
| Repetition cycle |
0.05s to 99.9s +/-10% / Manual 0.05s to 10.0s: 0.05s step, 10.0 to 99.9s: 0.10s step |
|
| No. of time of discharge | 1 to 60,000 times /continuous | |
| Discharge mode | Contac discharge / Air discharge | |
| Radiation level mode | Normal mode / Extra mode | |
| Trigger mode | Gun trigger / Main unit trigger / External trigger | |
| Operation panel | Color LCD / Push-buttons (Partially lighting) | |
| Gun holder | Standard attached (to hold the discharge gun Model GT-30RA) | |
| Radiation mode select switch | Extra / Normal switching function built-in | |
| Discharge detection | Discharge detection function in air-discharge mode equipped | |
| Pre-checking function |
Following 3 steps function equipped (by under operation. Not the calibration but just checking) SETP1 High voltage output checking STEP2 Withstanding voltage checking STEP3 Discharge relay operation checking |
|
| CR & Gun head checking | CR constant and gun head recognizable (with an indicator to prevent the wrong combination) | |
| IEC standard test mode |
Contact discharge mode: 2.0, 4.0, 6.0, 8.0 kV step Air discharge mode: 2.0, 4.0, 8.0, 15.0 kV step |
|
| Manual test mode |
Contact/Air discharge mode: 0.20kV to 30.0kV Sweep function available Up to 50 units (test settings) storable |
|
|
Sequence test mode |
Seamless run of the selected test sequence No. of steps per one sequence: up to 22 steps No. of test sequences: up to 20 |
|
| Warning lamp |
Lights up while the HV circuitry is on. Blinks while discharges are in progress. |
|
| Charging capacitor and resistance | 150pF +/-10%, 330 ohm+/-10% (built into Discharge Gun GT-30RA) | |
| Main unit charging resistance | 10M ohm (53M ohm for combination with Discharge Gun GT-30RA) | |
| AUX connector |
D-SUB 15 pin, female connector Connection of Warning Lamp (optional) Connection of Automatic ESD Eliminator (optional) External interlock input External trigger input |
|
| Optical communication connector | Optic connector for PC communication (serial interface) | |
| Power supply/ Power consumption | 100V to 240V AC, 50Hz/60Hz +/-10% 75VA | |
| Included accessories |
Remote controller 13-00004A, Gun holder, Instruction manual |
|
| Dimensions and weight |
(W) 270 X (H)312 X (D)295 mm Approx. 7.0kg (gun holder excluded) , Approx. 7.5kg (gun holder included) |
|
Discharge Gun Model : GT-30RA
| Items | GT-30RA specifications | |
| Output voltage | 30.5kV Max | |
| Polarity | Positive or Negative | |
| Repetition cycle | 0.05s and over Note) Guaranteed value is 0.1s and over (330pF and under) | |
| Discharge mode | Contact or Air | |
| Charging resistor | Built-in CR unit | |
| Charge/Discharge capacitor & Discharge resistor | Built-in CR unit | |
| High voltage connector | Composite connector of high voltage and signal line (male) ｡ﾊNoiseKen custom) | |
| Operation switch | Discharge trigger | |
| LED irradiator | White LED light built-in for irradiating EUT ｡ﾊFocusing point is the tip) | |
| Included accessories |
CR unit (150pf-330 ohm) 06-00073B Conical discharge tip 12-00007A Round discharge tip 12-00008A Instruction manual |
|
| Dimensions and weight |
(W) 83X (H) 217 X (D) 229 mm (projection excluded) Approx. 10.8kg (Cable included, connecter excluded) |
|
