雙錐形對數週期天線(30MHz~6GHz)

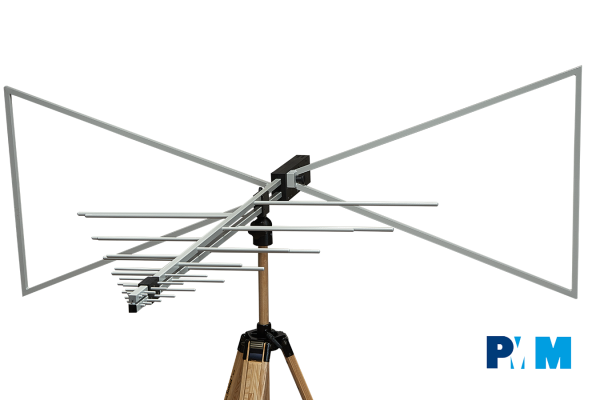

雙錐形對數週期天線 BL-01
頻率範圍為30MHz~6GHz
出色的天線因素
三腳架適配器,可輕鬆實現垂直 - 水平極化變化
個別校準
堅固,防鏽的鋁結構
輕量級
型號 : BL-01


SPECIFICATIONS

Frequency : range  30 MHz to 6 GHz

Impedance : 50 Ω nominal

Gain : -9 to +5 dBi typical

Antenna factor : 8 to 45 dB/m typical

VSWR

30 MHz < 16:1 typical

60 to 120 MHz < 4:1 typical

120 to 170 MHz < 2:1 typical

170 MHz to 6 GHz < 1.5:1 typical

Construction :Aluminium

Max input power 100 W @ 1 GHz

                             50 W @ 6 GHz

Connector  :N female

Dimensions (L x H x W) 145 x 61 x 157 cm

Weight : 5,5 kg

Colour : RAL 7035
