The SG-7040 Series simulates power supply voltage fluctuation to test automotive electronics. Connections of automotive electronics are not limited to +B, but connections are also done to ACC and IG.

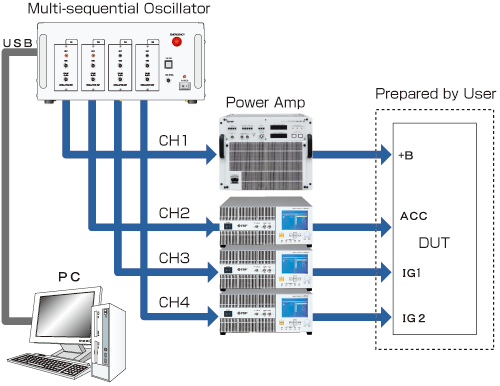

In response to testing needs for synchronized, multi-channel fluctuation simulations, the SG-7040 Series can be configured with one to four sequential oscillators and with the relevant number of high speed bipolar power amplifiers to carry out highly accurate and fast response tests on multi-channel basis.

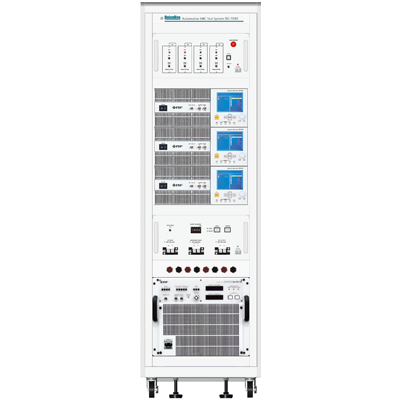

The SG-7040 system is primarily comprised of the following three components: multi-sequential oscillator, bipolar power amplifier and arbitrary waveform creation software. The required number of channels of multi-sequential oscillator shall be configured according to test requirements and appropriate bipolar power amplifiers shall be selected according to the current requirement for each line of the device under test.
1. Multi-sequential Oscillator SG-7040
2. Arbitrary Waveform Creation Software
The arbitrary waveform creation software easily creates complicated waveforms with repeated voltage and time ramping with its superb GUI.
3. Bipolar Power Source
High-speed bipolar power source is selected according to the DUT power rating.
Muti-sequential Oscillator SG-7040
| Parameters | Specifications |
| Channel | 1channel - 4channels (Max.4 channels) |
| Trigger output for Oscilloscope |
BNC connector/ 0-5 Active low Set the desired point as the trigger point with the waveform creation software, and monitor generated waveforms with the external trigger function of the scope |
| Waveform generating method | Sampling waveform output based on partial waveform memory and DSP circuit output CSV data |
| Output voltage | 0.00 to ±6.00V |
| Output current | 5mA max. |
| Output impedance | 50 ohm |
| Resolution (Setting) | 0.01V |
| Resolution (Output) | 0.732 mV |
| Offset voltage | ±6.0 V |
| Frequency response characteristics |
150kHz max (±6.00V amplitude sine wave) 150kHz max (±6.00V amplitude rectangular wave) |
| Frequency accuracy | ±20ns+50ppm (over the entire frequency range) |
| Rise time/Fall time | Less than 100ns (0±1.00V swing) |
| Slew rate | 20V/µs |
| Synchronization accuracy |
Adjustable up to 1,000,000µs, at a step of 1µs to compensate differences in response time of the amplifiers connected Synchronization accuracy of less than 1µs at the outputs of the amplifiers connected |
| Calibration output | 1kHz 1V-p-p (for test) |
| PC interface | USB1.1 |
| Dimensions | Approximately (W)430 x (D)400 x (H)200 mm |
| Weight | Approximately 10 kg |
