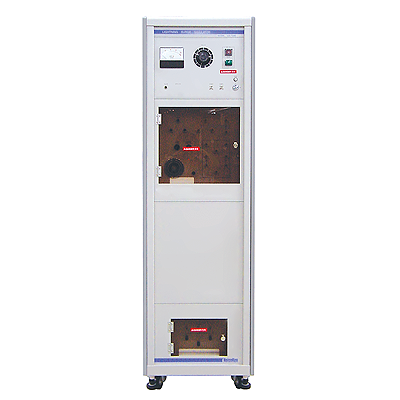

Item | Specifications | |
Voltage surge | Sruge waveform |
1.2/50µs |
Output voltage | 20kV max. | |
Polarity | Positive or negative | |
Output impedance | 6 ohm±10% | |
Built-in load resistor | 50 ohm ±10% | |
Short circuit current | 3300A max | |
Current surge | Surge waveform | 8/20 µs |
Polarity | Positive or negative | |
Output impedance | 5 ohm ±10% | |
Built-in load resistor | 3K ohm ±10% | |
Output current | 4000A max. | |
Surge repetition cycle | Single shot | |
Voltage surge superimposed on power line | AC | 20kV max. |
DC | ------ | |
Current surge superimposed on power line | AC | 4000A max. |
DC | ------ | |
Power capacity of equipment under test | AC | Single phase AC240V 20A max. |
DC | ------ | |
Power consumption | Rated value | 300VA |
Peak value when charging | 1.1kVA | |
Mesial attenuation time | 0.5 second | |
Power supply | Ajustable to local supply voltage required | |
Dimensions (W) x (H) x (D) mm | 555x1860x840 | |
Weight | Approx. 450 kgs. |
