ISO 7637-2 Pulse 5a/Pulse 5b車用雷擊產生器

ISO 7637-2 Pulse 5a/Pulse 5b車用雷擊產生器
採用重視穩定及高再現性的LCR電路方式
內建60V 30A CDN ,故可單機使用
Pulse5b標準配備可用0.1V步進設定控制電壓的可程式控制電路

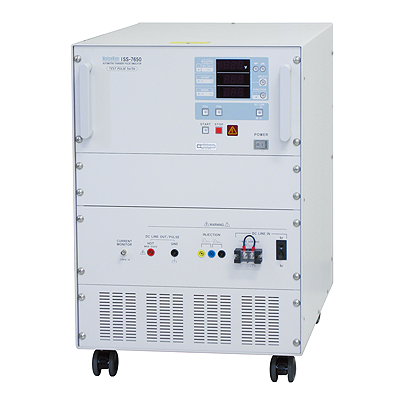

型號 : ISS-7650

  • Pulse 5a and Pulse 5b generating unit
  • A built-in 60V/30A Coupling Network allows independent operation.
  • Capacitive - resistive (inductive) discharge circuitry in strict conformity with the standard and with the actual car environment.
  • Equipped with a programmable clip circuit that can produce Pulse 5b clipped waveform in steps of 0.1V without externally attaching a zener diode.
  • Pulse 5b clipped waveform is pre-eminent in smoothness.
  • Serial or parallel pulse coupling selectable.
  • Pulse repetitions controller provided (30s to 999s and 1 to 999 pulses)




Parameters

Specifications

Counter 1~ 999 Count,  7 Segment LED
Cycle Timer 30s ~ 999s , 1s step   7 Segment LED
Interlock Control by External Input, Contact Point or Open Collector
L Level: 0V ~ 0.4V ,        H Level: 2V ~ 4V
Warning Lamp Option Model: 11-00008A
Current Monitor Output Unit 10mV/A
Characteristic Freq DC ~ 150kHz,  Approx. -3dB
Error Tolerance ±5% (DC Measure Value) ±0.8Amax (Offset) at 25°C
Withstanding Voltage DC60V (BNC Terminal Exterior: FG)
Form BNC Terminal
(Oscilloscope Wave Verification 1M ohm Input)
Circuit Breaker Rated Current 40A
Remote Control From PC Interface Option: Optical Interface Unit Model: 07-00022A
Software Option: Remote Control Software Model: ISS-7601
Compatible OS Windows XP
DUT capacity DC60Vmax, 30Amax
Power supply AC100V, 110V, 120V, 200V, 220V, 240V ±10% (50/60Hz)
Operating temperature and humidity  23°C±5°C / 25~75% (No dewing shall occur.)
Dimensions (W) 430 X (H) 670  X (D) 660 mm (Projections excluded)
Weight Approx. 100kgs
Power consumption Charging: Approx. 600VA,     Standby: Approx. 150VA
Standard accessories Instruction manual
Spare fuse 6.3A
Interlock plug
DC injection selection plug
Current monitor coaxial cable
DC input cable 2m
Output cable 2m
Short lead cable (for waveform verification)
Pulse 5a 12V system 24V system
Output Voltage (Us) 20V ~  100V±10% (0.5V step) 20 ~  200V±10% ( 0.5V step)
Output Resistance (Ri) 0.5 ohm ~   8 ohm (0.5 ohm step)  1 ohm ~   8 ohm (0.5 ohm step)
Duration (td) 40ms, 100ms, 200ms, 350ms,
400ms ±20%
100ms, 200ms, 350ms, 400ms
±20%
Rise time (tr) 10ms-5ms/ +0ms 10ms-5ms/+0ms
Pulse 5b 12V system 24V system
Output Voltage (Uss) 10V ~   40V ±10%  (0.1V step)
Open Voltage (Us) 100V>=Us>Uss 200V>=Us>Uss
Duration (td) Varies dependent on Pulse 5a (1ms step)
