大儲存容量：可儲存達5,000筆測量結果。搭配選頻電/磁場監測分析儀(EHP-50D)使用的特點：
頻譜模式：顯示選頻測量值。
標準模式：以所選擇之安全標準的限值之％顯示測量值。
XYZ：同時顯示三軸同步測量值。
監測模式：並聯顯示以下結果類型：瞬間值(Actual)、最小值(Min)、最大值(Max)、平均值(Average)。
測量範圍及單位：
電場：0.0001～100kV/m；0.001～1000V/m。
磁場：0.0001～10mT；0.0001～100μT。
以數值顯示寬頻測量值或頻譜最高值(最高峰值)。
警告功能：聲音警報，電場與磁場可分開設定臨界值
測量電磁場，從低頻到微波
‧以3軸向探棒進行全向性測量，適用於5Hz∼60GHz頻率範圍的應用。
‧可搭配EHP-50D使用。
‧大型圖形化顯示幕；智慧型探棒介面，自動偵測探棒參數；完全自動歸零調整。
‧可儲存5,000筆測量結果。

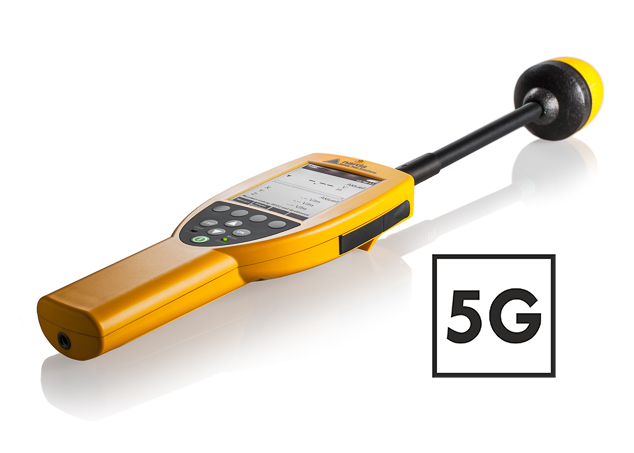

NBM-550為EMR-20/EMR-30/EMR-200/EMR-300最新替代款式
|
高頻探棒 |
|
|
Probe HF 3061, H-Field, for NBM, 300kHz-30MHz |
2402/05B |
|
Probe HF 0191, H-Field, for NBM, 27MHz-1GHz |
2402/06B |
|
Probe EF 0391, E-Field, for NBM, 100kHz-3GHz |
2402/01B |
|
Probe EF 0392, E-Field, HiPow, for NBM, 100kHz-3GHz |
2402/12B |
|
Probe EF 0691, E-Field, for NBM, 100kHz-6GHz |
2402/14B |
|
Probe EF 0692, E-Field, for NBM, 600MHz-6GHz |
2402/20B |
|
Probe EF 1891, E-Field, for NBM, 3MHz-18GHz |
2402/02B |
|
Probe EF 4091, E-Field, for NBM, 40MHz-40GHz |
2402/19B |
|
Probe EF 5091, E-Field, for NBM, 300MHz-50GHz, Thermo. |
2402/03D |
|
Probe EF 6092, E-Field, for NBM, 100MHz-60GHz |
2402/17B |
|
Probe EF 9091, E-Field, for NBM, 100MHz-90GHz |
2402/18B |
|
Probe EA 5091, FCC 1997 Controlled Shaped for NBM, 300 kHz - 50 GHz, E-Field |
2402/07D |
|
Probe EB 5091, IEEE 2019 Restricted Shaped for NBM, 3 MHz - 50 GHz, E-Field |
2402/21B |
|
Probe EC 5091, SC 6 2015 Controlled Shaped for NBM, 300 kHz - 50 GHz, E-Field |
2402/16D |
|
Probe ED 5091, ICNIRP 1998 Occ Shaped for NBM, 300 kHz - 50 GHz, E-Field (compliant with ICNIRP 2020 above 30 MHz) |
2402/10D |
|
選購配件 |
|
|
GPS Kit for NBM-550, Receiver and Mounting Set |
2400/90.10 |
|
Earphone, 3.5mm Plug |
2400/90.03 |
|
Test-Generator 27 MHz |
2244/90.38 |
|
Tripod, Non-Conductive, 1.65m, with Carrying Bag |
2244/90.31 |
|
Tripod Extension, 0.50m, Non-Conductive (for 2244/90.31) |
2244/90.45 |
|
Handle, Non-Conductive, 0.42m |
2250/92.02 |
|
Cable, Coaxial Multi-pin/ BNC, for NBM-550, Ext. Trigger, 2m |
2400/90.04 |
|
Cable, FO Duplex (1000 μm) RP-02, 2 m |
2260/91.02 |
|
Cable, FO Duplex (1000 μm) RP-02, 5 m |
2260/91.09 |
|
Cable, FO Duplex (1000 μm) RP-02, 10 m |
2260/91.07 |
|
Cable, FO Duplex (1000 μm) RP-02, 20 m |
2260/91.03 |
|
Cable, FO Duplex (1000 μm) RP-02, 50 m |
2260/91.04 |
|
Cable, FO Duplex, F-SMA to RP-02, 0.3 m |
2260/91.01 |
|
O/E Converter RS232, RP-02/DB9 |
2260/90.06 |
|
O/E Converter USB, RP-02/USB |
2260/90.07 |
|
Cable, Adapter USB 2.0 - RS232, 0.8 m |
2260/90.53 |
