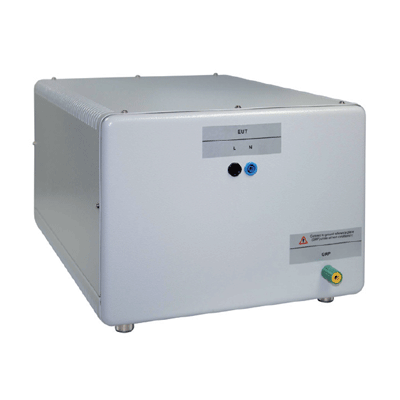

隔離變壓器

隔離變壓器用於將線路去耦合,提供從6A/單相到20A/3相的機型。
所有機型都符合IEC/EN 61000-4-16標準
電壓:提供230V;380V機型
電流:提供6A;16A;20A機型
相位:提供單相;3相機型
型號 : Isolation Transformer

型號:IT-6
Isolation Transformer
Power: 1380VA Primary voltage: 230V Secondary voltage: 230V Secondary current: 6A Differential/ Common-Mode attenuation (15Hz ..150kHz): 60dB Isolation: >1kV (50Hz/ 60Hz) acc. to IEC/ EN 61000-4-16

型號:IT-16
Isolation Transformer
Power: 3680VA Primary voltage: 230V Secondary voltage: 230V Secondary current: 16A Differential/ Common-Mode attenuation (15Hz ..150kHz): 60dB Isolation: >1kV (50Hz/ 60Hz) acc. to IEC/ EN 61000-4-16

型號:IT-20
Isolation Transformer
Power: 4600VA Primary voltage: 230V Secondary voltage: 230V Secondary current: 20A Differential/ Common-Mode attenuation (15Hz ..150kHz): 60dB Isolation: >1kV (50Hz/ 60Hz) acc. to IEC/ EN 61000-4-16 Weight: 50kg
