電容耦合夾(EFT Clamp)

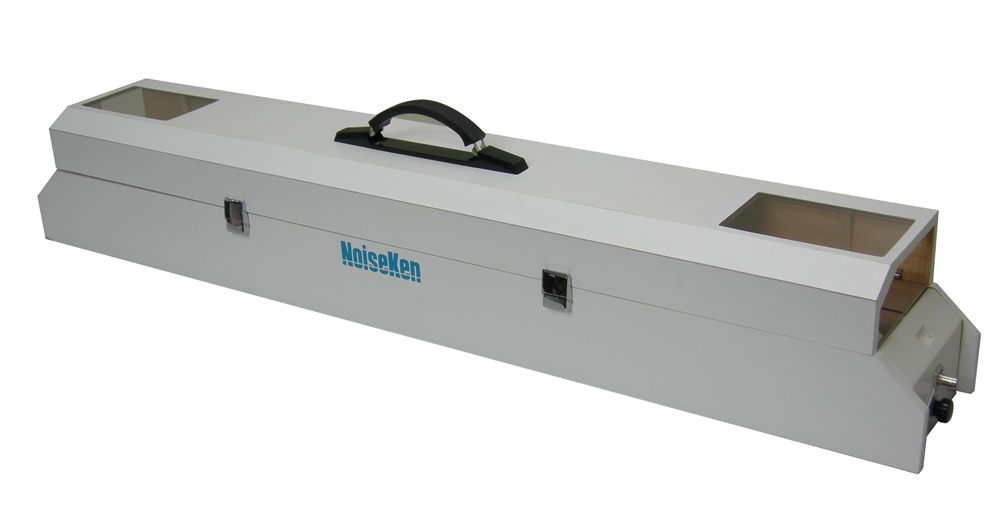

NOISEKEN 電容耦合夾 (EFT Clamp)15-00009A
適用於依IEC61000-4-4 Ed.3標準對信號線進行電容耦合測試。
型號 : 15-00009A

Parameter Specifications
Pulse input connector NMHV type connector
Output waveform

Peak voltage (Vp): (1000 +/- 200) V

Rise time (rt): (5 +/-1.5) ns

Pulse width (td) :  (50 +/-15) ns

Coupling plate

Length: (1000+/-50) mm, Width: (140 +/-7) mm

The height above the ground reference plane: (100 +/-5) mm

Dimensions

(W)1110 x (H)169 X (D)160 mm: Cover closed

(W)1110 x (H)169 X (D)325 mm: Cover opened

Weight Approx. 7.5 KG
Included accessories Coaxial cable (NMHV connector 1M), Instruction manual
Optional accessory

Transducer plate (Clamp calibration fixture)

Model: 15-00010A







Transducer plate length: 1050 +/-5mm

Transducer plate width: 120+/-1mm

Maximum dimensions: (D)1130 x (W)130 X (H) 109 mm

Weight: 350g
