耦合網路(CN)

在IEC/EN 61000-4-16標準中說明,耦合頻率範圍0Hz∼150kHz內的傳導的共模干擾到EUT導線上的耐受性測試,需要一個依線路類型而選擇的CN(耦合網路)。

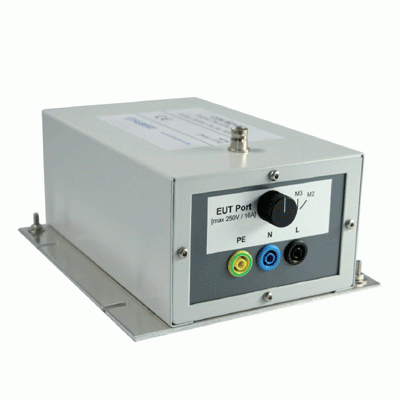

型號 : M2+M3-16

型號:M2+M3-16
Coupling unit acc. to IEC 61000-4-16,
for unscreened power supply lines, Frequency range: DC/ 15Hz to 150kHz Number of lines: 2/3 switchable Max. current: 32A Max. Voltage: 250 VAC Connector: 4mm safety banana jack
型號:T2-16
Coupling unit acc. to IEC 61000-4-16,
for unscreened, balanced lines, Frequency range: DC/15Hz to 150kHz, Number of lines: 2 Max. current: 0,5A Max. Voltage: AC 150V DC 200V Connector: terminal block
型號:T4-16
Coupling unit acc. to IEC 61000-4-16,
for unscreened, balanced lines, Frequency range: DC/15Hz to 150kHz, Number of lines: 4 EUT / AE-port: Max. current 0.5A Max. voltage: 50V Connector: terminal block
型號:T8-16
Coupling unit acc. to IEC 61000-4-16,
for unscreened, balanced lines, Frequency range: DC/15Hz to 150kHz, Number of lines: 8 EUT / AE-port: Max. current 0.5A Max. voltage: 50V Connector: terminal block
型號:RJ45-16
Coupling unit acc. to IEC 61000-4-16,
with connector RJ45; for unscreened, non-balanced lines Frequency range: DC/15Hz to 150kHz Number of lines: 8; Max. current: 0.5 A; Max. voltage: AC 40V DC 50V
