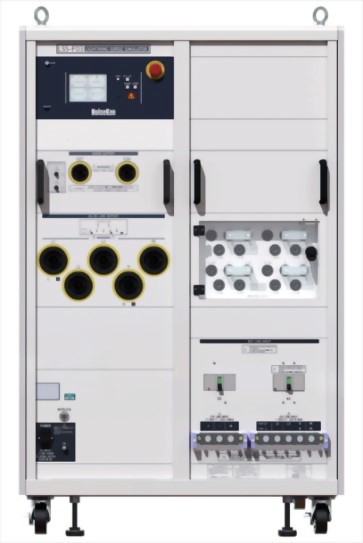

●SURGE GENERATION UNIT (1.2/50 μS-8/20 μscombination waveform)
|
PARAMETER |
SPECIFICATION |
|
Open voltage |
0.5kV～15kV ±10% |
|
Front time |
1.2μs±30％ |
|
Time to half-value |
50μs±20％ |
|
Short-circuit current |
250A～7500A ±10％ |
|
Front time |
8μs±20％ |
|
Time to half-value |
20μs±20％ |
|
Output Polarity |
+ / - |
|
Output impedance |
2Ω±10％ |
|
Surge generation circuit |
Floating |
|
Minimum charging time |
0.0kV -6.0kV ：10 s |
|
6.1kV -15.0kV ：20 s |
●AC/DC CDN
|
PARAMETER |
SPECIFICATION |
|
|
Surge Waveform |
1.2/50μs -8/20μs combination waveform |
|
|
Maximum surge voltage and current |
Up to the MAX available setting value |
|
|
Coupling CircuitIEC 61000-4-5 |
18μF |
Line-to-Line (10Ω + 9μF selectable) |
|
10Ω ±9μF |
Line-PE (18μF selectable) |
|
|
Injection Modes |
Line-to-Line, Line-PE |
|
|
EUT Power Line Configuration |
AC |
L1/L2/L3/N/PE (single/three-phase shared) |
|
DC |
+/-/PE |
|
|
EUT Power Line capacity |
AC500V/300A MAX 50/60Hz、 |
|
|
DC600V/300A MAX |
||
|
Decoupling Coils |
1.5mH (standard), 1.3mH/1.0mH/0.8mH(option) |
|
|
Phase angle control |
0 -360°±10° |
OTHERS
|
SpecificationsPARAMETER |
SPECIFICATION |
NOTES |
|
Voltage monitor |
BNC output, 1/2000 ±10% |
When surge-out is open circuited |
|
Current monitor |
BNC output, 1mV/A ±10% |
When surge-out is short-circuited |
|
Power Supply |
AC100V ～AC240V ±10％ 50Hz / 60Hz |
|
|
Dimensions |
W1034.H1640.D918 mm |
Excluding protrusions |
